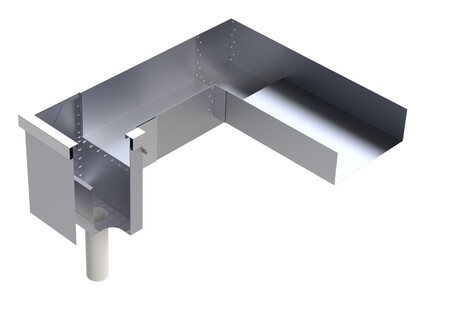

END SIDE OUTLET "L" SHAPE CHANGES BOX GUTTER DIRECTION 90 DEGREES INTO ANOTHER BOX GUTTER

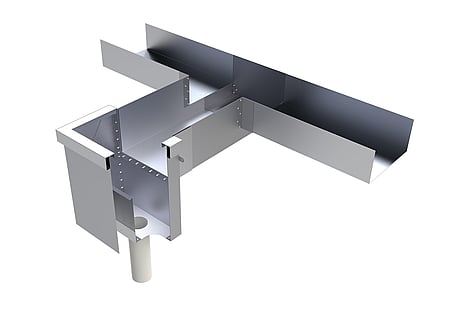

"T" SIDE OUTLET ALLOWS TWO BOX GUTTERS TO FLOW TO ONE DISCHARGE POINT

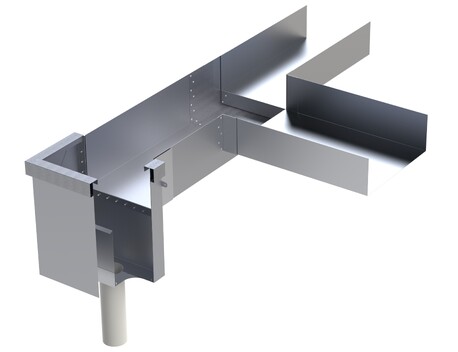

CORNER SIDE OUTLET ALLOWS TWO BOX GUTTERS TO DISCHARGE TO A SINGLE POINT

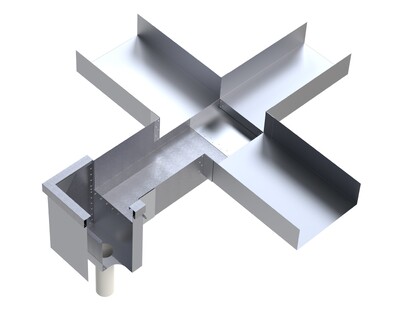

CRUCIFORM SIDE OUTLET - 3 BOX GUTTERS TO ONE DISCHARGE POINT
ADDITIONAL INFORMATION
All Dam Buster Side and Corner Outlet devices are pre-engineered and sized, and are designed to be used in combination with a correctly sized Dam Buster rainhead so as to achieve compliance.
We do not make custom versions of these products but all of them are adjustable on site for varying applications - please refer to our Product Technical Statement for specific information about what is possible.
So long as the overflow device and a Dam Buster Rainhead (in combination with correct downpipe sizing) are selected in accordance with the total design flow rate in the box gutter/s from the Dam Buster rainhead design table, the Dam Buster direction change device automatically has sufficient hydraulic capacity for any allowable combination of flow rates.
They might look simple but all of these devices are complex, fully engineered, tested and certified, patent protected products which fully comply with the conformance and compliance requirements of the National Construction Code. This means they can be selected and certified with absolute confidence in all areas of Australia.
Any queries should be directed to our Technical Team E: enquiries@dambuster.com.au
Side, End, Corner and Crucifix Outlets Solve An Age Old Drama
Dam Buster direction change devices use the power of gravity to easily and safely change the direction of water flow in box gutters, then take it to the point of discharge fitted with a Dam Buster rainhead.
NB: If you want to change direction upstream of the point of discharge instead, please see our Elbow, T Junction and Corner Junction Devices HERE.
All of these amazing devices feature inbuilt on site adjustability to make installation a breeze e.g the TSO-300 ("T" Side Outlet) expands on site and without additional tools to custom fit any incoming box gutter between 300 and 450mm wide. See pages 50-53 of our Product Technical Statement HERE for more information.
They also require minimal clearance (ranging from 50mm to only 70mm below the sole of the box gutter) and are therefore suitable for all situations where a sump won't fit, or where pipe work can't be run within the building.
Product dimensions can be found HERE.
Available Designs:

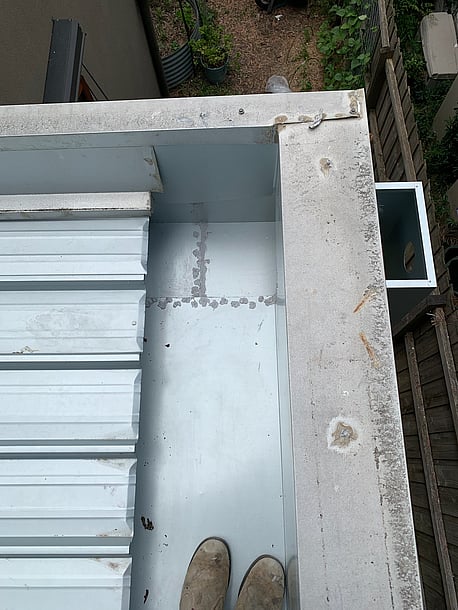

"L" shape - 'End Side Outlet (ESO), (top image on the left) with one box gutter only discharging to the device. This device sits at the end of a box gutter and is used to change its direction 90 degrees. It requires no sump or internal pipe work or bulkhead to install - the only pipework is the downpipe on the rainhead outside the building. Available ‘left’ (L) or ‘right’ (R) handed* SKU ESO-XOO-L or R (where XOO is the box gutter size in mm e.g ESO-400-L).

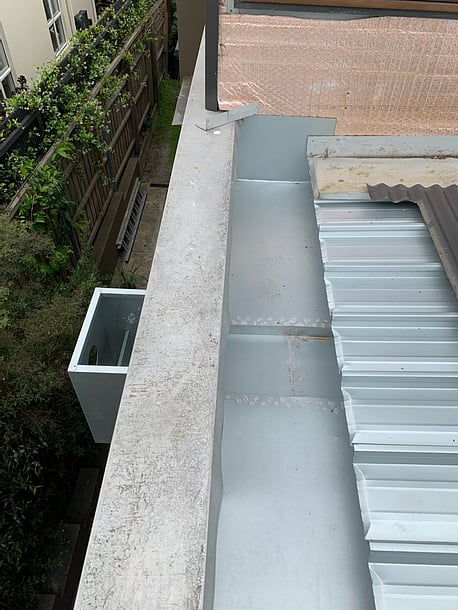

"T" shape - 'T' Side Outlet (TSO), with two box gutters discharging to the device and then to a single outlet point. This device also requires no sump or internal pipe work or bulkhead to install and the only pipework is the downpipe on the rainhead outside the building. Very useful for 90 degree side outlets from box gutters. SKU TSO-XOO e.g TSO-200
"T" shape - Corner Side Outlet (CSO). This enables two box gutters at the corner of a building to discharge to a single rainhead (for example, on a Hip roof) SKU CSO-XOO-L or R e.g CSO-300-R. Also requires no sump or internal pipe work or bulkhead to install, and the only pipework is the downpipe on the rainhead outside the building.
"X" shape - Cruciform Side Outlet (XSO). Accepts three box gutters discharging to a single outlet device (for example, where the device is located at the party walls in a row of terrace style houses, having hip ended roofs at the front or rear parapet wall) SKU XSO-XOO e.g XSO-300. Also requires no sump or internal pipe work or bulkhead to install, and the only pipework is the downpipe on the rainhead outside the building.
* To determine LEFT or RIGHT for ESO and CSO devices, just imagine you are in a small boat travelling down the box gutter with the flow and wanting to turn LEFT or RIGHT at the device.
Used in series or in combination, virtually any box gutter directional discharge problem can be easily solved, even in a retrofit situation, by using these revolutionary Dam Buster products.
All box gutters discharging to a Dam Buster Side Outlet device must be designed for 'free flow' in accordance with AS/NSZ 3500.3. If in doubt, please seek advice.
NOTE: Requirements vary from state to state, however a Performance Solution may be required for installation certification purposes of these Dam Buster devices, particularly in Victoria; that document should be developed by a suitable expert such as a qualified hydraulic engineer, in accordance with the requirements of the National Construction Code. Documentation to assist the development of a Performance Solution can be found here at Technical Downloads
